TEKCN TC-105 XGPON/XGSPON Power Meter
TEKCN TC-105 XGPON Power Meter
Overview:
TEKCN TC-105 is a handheld instrument that integrates FTTx/PON optical power testing, suitable for the acceptance, opening and maintenance of EPON, GPON, and 10GPON (XGPON/XGSPON) networks.

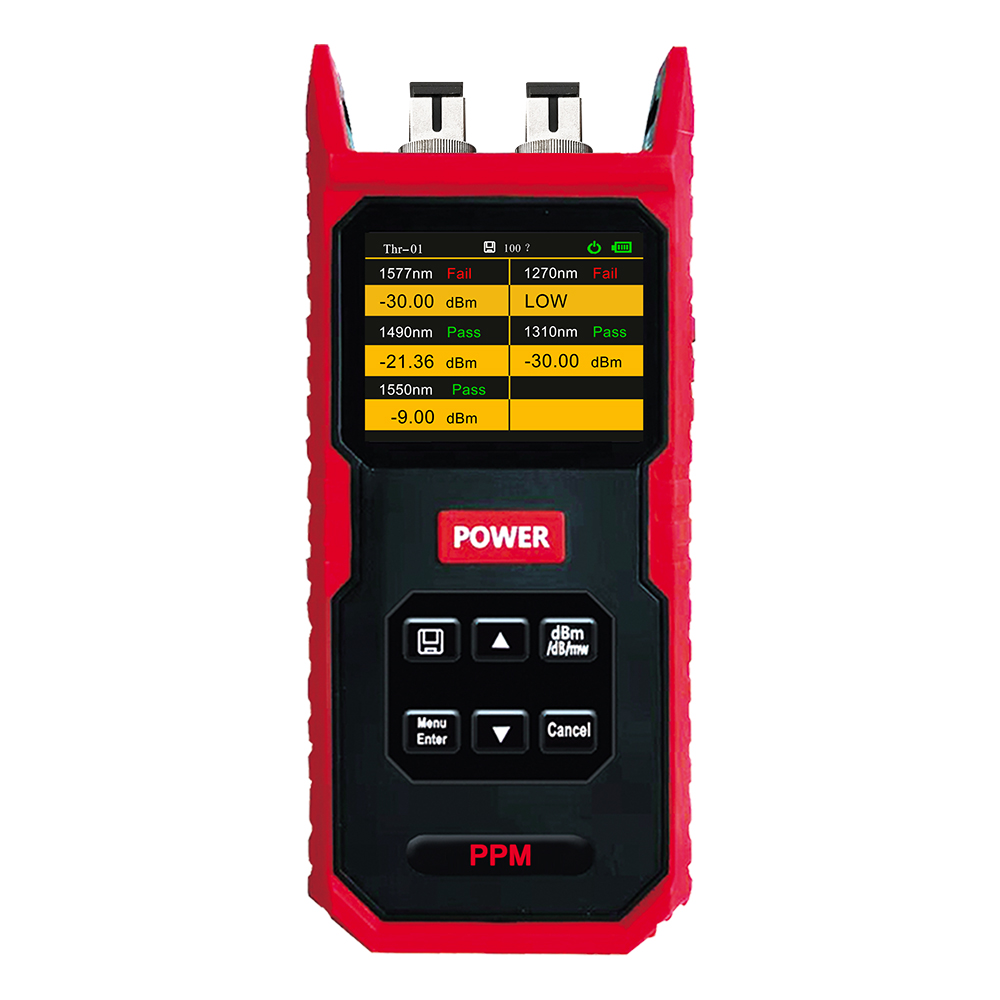

With the coverage of 10G EPON and XGPON/XGSPON, there will be two wavelengths of optical signals at the same time in the downstream of FTTH: 1490nm and 1577nm, and Upstream wavelengths: 1310nm, 1270 nm. The traditional Power Meter can only measure the total downlink power and uplink power, which can no longer meet the needs of daily installation and maintenance personnel. TC-105 XGPON power meter can test the optical power of 1270/1310/1490/1577/1550nm at any position in the PON network at the same time. The test result of sub-wavelength is accurate, and it has a threshold setting function to determine the optical power in the optical fiber "pass/fail", Improve the network judgment time.
TEKCN TC-105 can also integrate the function of visual Fault Locator (VFL), which is multi-purpose in one device. High-definition color screen design, a variety of backlight options, adapt to work in a variety of light environments. With automatic shutdown mode, standby time can be set. Hand-held design, light weight, smaller size, long standby time, simple operation.
Highlights:

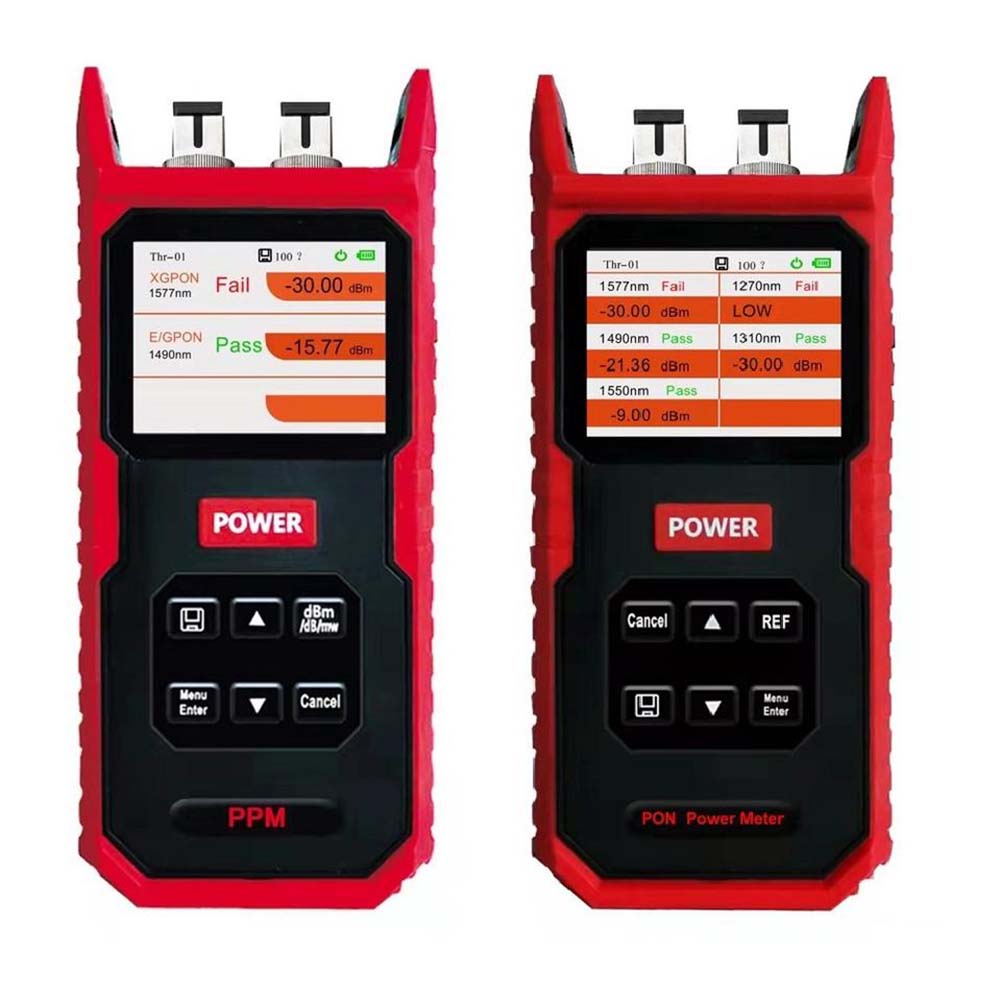

l High-definition color LCD screen
l Sub-wavelength test of high isolation optical components
l Reference value can be set, with alarm function
l Multiple adapter configurations
l Store & adjust 999 Groups of test data
l Shutdown memory, multiple power supply options available
l Custom visual light source function
l Humanized backlight adjustment and automatic shutdown function
Technical Parameter:
| Model | TC-105 | ||||
| XGPON Power Meter | |||||
| Wavelength | 1270nm | 1310nm | 1490nm | 1550nm | 1577nm |
| Spectral Bandwidth(nm) | 1260～1280 | 1300～1320 | 1480～1500 | 1540～1560 | 1570～1581 |
| Optical Isolation (dB) | >30 @1310 | >30 @1270 | >40 @1270 | >40 @1270 | >40 @1270 |
| Optical Isolation (dB) | >40 @1490 | >40 @1490 | >40 @1310 | >40 @1310 | >40 @1310 |
| Optical Isolation (dB) | >40 @1550 | >40 @1550 | >35 @1550 | >35 @1490 | >35 @1490 |
| Optical Isolation (dB) | >40 @1577 | >40 @1577 | >40 @1577 | >30 @1577 | >30 @1550 |
| Test Range | -40～+10 | -40～+10 | -40～+10 | -50～+20 | -40～+10 |
| Connector | FC/SC/ST 2.5mm universal connector PC (customized APC) | ||||
| Measurement Unit | dB/dBm/mW/uW/nW | ||||
| Display Resolution | 0.01 dB | ||||
| Power Uncertainty | ±0.5 dB | ||||
| Linearity | ±0.1 dB /10 dB | ||||
| Channel Insertion Loss | <1.5 dB | ||||
| Data Storage | 999 items | ||||
| Visual Fault Locator | |||||
| Output Power | 10mW | ||||
| Connector | 2.5mm universal connector + FC or SC | ||||
| Wavelength | 650 ± 10 nm | ||||
| Internal Modulation | CW,2Hz | ||||
| General Parameters | |||||
| Working Temperature | -10～+60 ℃ | ||||
| Storage Temperature | -25～+70 ℃ | ||||
| Relative Humidity | 0~80% | ||||
| Automatic Shutdown Time | 5～90 min (adjustable) | ||||

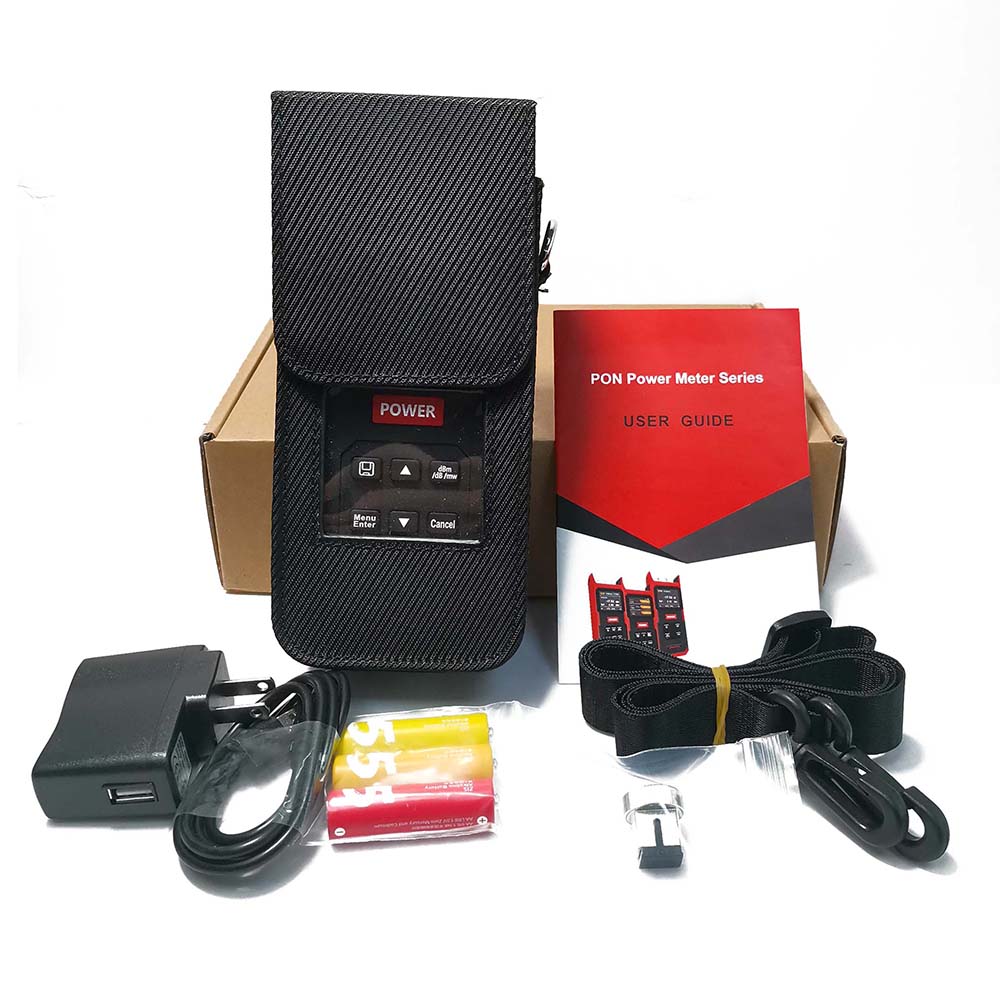

| Power Supply | 3*AA batteries (2000mAh rechargeable lithium battery optional) | ||||
| Continuous Working Time | working time＞36 h，standby time＞60 h① | ||||
| Dimension | 76 mm * 177.5 mm * 40 mm | ||||
| Power Source | 8.4V/1.5A② | ||||
| Weight | 0.30 kg③ | ||||
Note: ① The continuous working time of the OPM when the rechargeable lithium battery is fully charged. ② When the rechargeable battery model is selected, the accessories include an 8.4V/1.5A power adapter. ③ The Weight without battery.
